Technical characteristics

• Certification AENOR.
• Ceramic cartridge Ø35 mm.
• Water saving system S2 through the handle opening in two phases.
• Flow rate at 3 bar: 20 l/min through bath outlet and 12 l/min through shower outlet.
• Thermal shock resistant and anti-Legionella chemical.
• Guarantee of 5 years for tapware and 2 years for accessories.
• Use pressure between 1-5 bar. Recommended pressure 3 bar.
• Resists static pressure equal to or less than 10 bar and water hammer up to 25 bar.
• 3 bar acoustic level less than 20 dB.
• Comfort benefits of fidelity, sensitivity, and constancy in temperature selection.
• Recommended temperature for hot water: 55ºC. Maximum temperature of use: 65ºC, up to 1 hour at 90ºC.
• Termostop Black system for maximum water temperature limitation.

Tests

• Water tightness, flow rate, mechanical behavior under pressure, mechanical resistance, dimensional, acoustical, and corrosion test according to European standards EN 817 and EN 248.

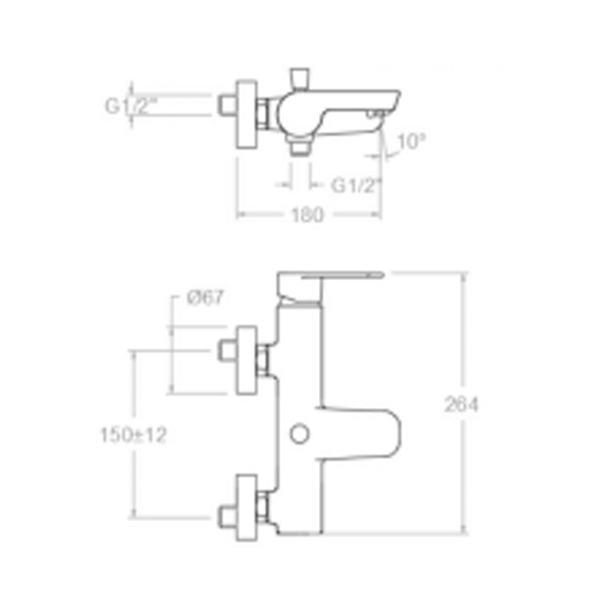

Dimensions
